Semin intervent Radiol 2021; 38(02): 167-175
DOI: 10.1055/s-0041-1727103
Review Article

Physical Examination and Ultrasound Evaluation of Patients with Superficial Venous Disease

Leigh C. Casadaban
1  Division of Interventional Radiology, Department of Radiological Sciences, David Geffen School of Medicine at UCLA, Los Angeles, California
,
John M. Moriarty
1  Division of Interventional Radiology, Department of Radiological Sciences, David Geffen School of Medicine at UCLA, Los Angeles, California
,
Cheryl H. Hoffman
1  Division of Interventional Radiology, Department of Radiological Sciences, David Geffen School of Medicine at UCLA, Los Angeles, California
› Author Affiliations


Abstract

Systematic and standardized evaluation of superficial venous disease, guided by knowledge of the various clinical presentations, venous anatomy, and pathophysiology of reflux, is essential for appropriate diagnosis and optimal treatment. Duplex ultrasonography is the standard for delineating venous anatomy, detecting anatomic variants, and identifying the origin of venous insufficiency. This article reviews tools and techniques essential for physical examination and ultrasound assessment of patients with superficial venous disease.


#

Superficial venous disease is often perceived as a cosmetic illness; however, symptoms can be debilitating and often underdiagnosed, misdiagnosed, or mismanaged.[1] Venous disease has a range of manifestations from asymptomatic telangiectasias to venous edema, fibrosis, and active venous ulcerations. As many as 40% of Americans suffer from venous reflux, and one-third have advanced venous disease.[2]

Understanding the etiology, pathophysiology, and natural progression of disease is imperative. Superficial venous disease etiology is typically genetic, as there is an abnormality in the vein wall integrity related to quality and volume of collagen and elastic fibers.[3] These abnormalities contribute to vein enlargement and valvular incompetence, resulting in increased venous hypertension and impaired return of blood.[4] Additionally, the integrity of the venous muscle pumps is essential. Without ambulation and calf contraction, there is increased venous stasis. Other risk factors include increasing age, obesity, prolonged standing, history of deep vein thrombosis, and number of prior pregnancies.[3] [5] Female gender was once considered to be a risk factor but may actually carry less risk than previously thought.[5] Newer studies are showing an association with increased height.[6]

Clinical symptoms, such as leg cramping, heaviness, and edema, are worse later in the day. Symptoms are exacerbated by prolonged standing and relieved with leg elevation. Other clinical symptoms of superficial venous disease include skin changes such as brown discoloration, eczema, and restless leg syndrome. Symptoms and impact on quality of life can be documented with standardized reporting, for which there are various assessment tools. One validated and reproducible scoring system is the venous clinical severity score (VCSS), which was revised (VCSS-R) in 2010 and includes 10 attributes with 4 grades.[7] A separate score is calculated for each leg ([Table 1]). The VCSS-R is a clinical assessment tool that is documented on each patient in the history of present illness. This precedes a complete physical examination and ultrasound evaluation, all of which contribute to a comprehensive evaluation of patients with superficial venous disease.

Table 1

Venous clinical severity score, 2010 revision (VCSS-R) worksheet

Attribute

 Absent = 0

 Mild = 1

 Moderate = 2

 Severe = 3

Pain or other discomfort

(i.e., aching, heaviness, fatigue, soreness, burning)

 None

 Occasional, not restricting daily activities

 Interferes but does not prevent regular daily activities

 Limits most regular daily activities

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

Varicose veins

 ≥ 3 mm diameter in standing position

 None

 Few: (also corona phlebectatica)

 Calf or thigh

 Calf and thigh

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

Venous edema

 None

 Foot and ankle

 Above ankle and below knee

 To knee and above knee

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

Skin pigmentation

 None or focal

 Perimalleolar

 Lower third of calf

 Above lower third of calf

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

Inflammation

Erythema, cellulitis, venous eczema, dermatitis

 None

 Perimalleolar

 Lower third of calf

 Above lower third of calf

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

Induration

Chronic edema, atrophie blanche, lipodermatosclerosis

 None

 Perimalleolar

 Lower third of calf

 Above lower third of calf

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

Number of active ulcers

 None

 1

 2

 ≥3

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

Active ulcer duration (longest active)

 None

 < 3 mo

 > 3 mo, <1 y

 > 1 y

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

Active ulcer size

 (largest active)

 None

 < 2 cm

 2–6 cm

 > 6 cm

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

Compression therapy

 Not used

 Intermittent

 Most days

 Daily

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

 Rt

 Lt

VCSS – RIGHT: __________ VCSS – LEFT: __________


Abbreviations: Lt, left; Rt, right.


Source: Adapted with permission from the American Venous Forum Ad Hoc Outcomes Working Group.[7]


Physical Exam

The physical exam is guided by the CEAP (clinical manifestations, etiologic factors, anatomic distribution, and underlying pathophysiology) classification, which is a worldwide standard for clinical reporting of chronic venous disorders.[8] The most recent revision in 2020 made clinically practical adjustments, noted in [Table 2]. While the clinical (C) classification is most commonly used, all four components (CEAP) are required to make a complete assessment of each limb. The CEAP reporting should always include the date and level of evaluation: Level 1 is based on clinical history and physical exam, Level 2 is noted following formal noninvasive duplex ultrasound imaging, and Level 3 is reserved for documentation after invasive diagnostic or therapeutic procedures.

Table 2

The 2020 update to the CEAP classification, adapted with permission from CEAP classification system and reporting standard, revision 2020

CEAP 2020

Clinical classification (C)

 C0

No visible or palpable signs of venous disease

 C1

Telengiectasias or reticular veins

 C2

Varicose veins

 C2r

 Recurrent varicose veins

 C3

Edema

 C4

Changes in skin and subcutaneous tissue

 C4a

 Pigmentation or eczema

 C4b

 Lipodermatosclerosis or atrophie blanche

 C4c

 Corona phlebectatica

 C5

Healed

 C6

Active venous ulcer

 C6r

 Recurrent active venous ulcer

Etiologic classification (E)

 Ep

Primary

 Es

Secondary

 Esi

 Secondary—intravenous

 Ese

 Secondary—extravenous

 Ec

Congenital

 En

No cause identified

Anatomic classification (A)

 As

 Superficial

 Ad

 Deep

 Ap

 Perforator

 An

 No venous anatomic location identified

Pathophysiologic classification (P)

 Pr

Reflux

 Po

Obstruction

 Pro

Reflux and obstruction

 Pn

No pathology identified

Source: Lurie et al.[8]


The clinical (C) classification is descriptive, but also aims to assess clinical change over time. There is now a new subscript for recurrent (r) disease for varicose veins and ulcers. Each clinical class is identified as symptomatic (s) or asymptomatic (a). The clinical (C) class characterizes telangiectasias (< 1 mm) and reticular veins (< 3 mm) as C1, separate from varicose veins (3 mm or more), which is classified as C2 ([Fig. 1]). Edema is C3 class, and characteristically begins in the perimalleolar region, but ascends higher with accumulation of fluid. If asymmetric and increased edema is noted in the left leg, further imaging studies can be performed with cross-sectional venous phase imaging, angiography, or intravascular ultrasound to evaluate for May–Thurner syndrome. Changes in skin and subcutaneous tissue are seen in C4 class, which underwent reorganization in the most recent classification. Eczema and brown pigmentation are classified as C4a. Lipodermatosclerosis, which is fibrosis in the dermis and subcutaneous tissue ([Fig. 2]), and atrophie blanche, which is a white atrophic scar, both comprise class 4b. Blue reticular veins and telengiectasias known as corona phlebectatica were newly added as a third subset, class 4c, and is an indicator for reflux and a risk factor of venous ulceration ([Fig. 3]).[8] Healed ulceration is class C5. The most severe complication is active ulcerations, C6, which occurs most often at the medial supramalleolar area, at the site of greatest hydrostatic pressure ([Fig. 4]).[1]

Zoom Image
Fig. 1 A network of superficial varicose veins in the medial calf communicating with a dilated and refluxing great saphenous vein (C2).
Zoom Image
Fig. 2 Lipodermatosclerosis is a chronic inflammatory condition consistent with fibrosis in subcutaneous tissue and hardening of the dermis, accompanied by skin discoloration secondary to hemosiderin deposition (C4b).
Zoom Image
Fig. 3 Corona phlebectatica, or blue telangiectatic and reticular veins around the medial malleolus, is a primary indicator of reflux in the great saphenous vein, or less commonly the small saphenous vein. It is newly added to the CEAP 2020 classification (C4c).
Zoom Image
Fig. 4 Multifocal venous ulcerations in the medial malleolus with fibrinous exudate. Also noted inferiorly is white irregular fibrosis and scarring, atrophie blanche, with scattered areas of brown staining and corona phlebectatica (C4bc6).

The etiology (E) characterizes disease into primary (Ep) venous insufficiency or secondary (Es) to an acquired condition, with new subdivision into intravenous (Esi), such as deep vein thrombosis, or extravenous (Ese), such as tumor mass compression. It also characterizes diseases as congenital (Ec) or no cause identified (En). For instance, Klippel–Trenaunay syndrome (KTS) is a congenital vascular disorder (Ec) characterized by port wine stains, varicose veins, and bony and soft-tissue overgrowth ([Fig. 5]). A new diagnosis of KTS or KTS variant can be made at the time of consultation for superficial venous disease by evaluating for skin, soft tissue, or bony changes.[9]

Zoom Image
Fig. 5 Extensive port wine staining throughout the left leg, most conspicuous at the medial thigh. Note the increased size of the left leg, with bony and muscular overgrowth throughout. There are varicosities, reticular veins, and telangiectasias present (C1234a Ec).

The anatomic (A) classification determines whether diseased segments are in the superficial (As), deep (Ad), or perforating (Ap) systems, and can include more than one of the above. In its most detailed form, the CEAP system recognizes 25 venous segments that are now formally described with abbreviations ([Table 3]). Finally, each segment is characterized according to the pathophysiologic (P) classification for underlying mechanism of disease: reflux (Pr), obstruction (Po), both (Pro) or unidentified (Pn). Non-CEAP findings include, for example, ambulatory status, nail and hair changes, and areas of thrombophlebitis and vasculitis.

Table 3

CEAP anatomic classification, adapted with permission from CEAP classification system and reporting standard, revision 2020

CEAP 2020

Anatomic classification (A)

As

 Superficial

 Tel

Telangiectasia

 Ret

Reticular veins

 GSVa

Great saphenous vein above knee

 GSVb

Great saphenous vein below knee

 SSV

Small saphenous vein

 AASV

Anterior accessory saphenous vein

 NSV

Nonsaphenous vein

Ad

 Deep

 IVC

Inferior vena cava

 Ret

Reticular veins

 CIV

Common iliac vein

 IIV

Internal iliac vein

 EIV

External iliac vein

 PELV

Pelvic veins

 CFV

Common femoral vein

 DFV

Deep femoral vein

 FV

Femoral vein

 POPV

Popliteal vein

 TIBV

Crural (tibial) vein

 PRV

Peroneal vein

 ATV

Anterior tibial vein

 PTV

Posterior tibial vein

 MUSV

Muscular veins

 GAV

Gastrocnemius vein

 SOV

Soleal vein

Ap

 Perforator

 TPV

Thigh perforator vein

 CPV

Calf perforator vein

An

No venous anatomic location identified

Source: Lurie et al.[8]



#

Ultrasound Evaluation

Ultrasound evaluation is the gold standard for superficial venous assessment. Both gray scale imaging with a 7.5- to 12-MHz probe and pulsed-wave Doppler imaging are needed. A dedicated ultrasound technologist performs a physical examination with the room lights on to look for cutaneous manifestations of the venous abnormalities. A thorough and detail-oriented ultrasound examination is then completed with emphasis on both anatomy and pathology. Ideally, the patient is upright; however, slight reverse Trendelenburg may be necessary for patient comfort and ergonomic considerations. False-positive and false-negative findings can occur if the patient is not standing; thus, if reflux time falls between 0.5 and 1.1 seconds, an upright examination is essential if possible.[10] Interrogation for the origin of venous abnormalities such as varicosities and ulceration, and other findings such as edema, calcifications, and Baker's cysts are reported as well.

Standardized lower extremity venous anatomy nomenclature established in an interdisciplinary consensus statement in 2002, updated in 2005, has become the de facto terminology used today.[11] [12] The essential vessels noted on each ultrasound exam are listed in [Table 4], and data include reflux time and diameter. Unlike the deep venous system that is named according to the associated artery, the superficial venous system contains more variable anatomy. The two most common superficial branches are the great saphenous vein (GSV) and small saphenous vein (SSV). Both lie between the superficial saphenous fascia and deep muscular fascia, which define the saphenous compartment.[13] The majority of superficial veins are named by their relationship to the saphenous compartment.[12]

Table 4

Superficial venous insufficiency evaluation requires assessment of the following vessels in each leg, with specific annotation for reflux or no reflux, reflux time in seconds, and diameter in centimeters

Abbreviation

Full terminology

GSV

Great saphenous vein

SFJ

Saphenofemoral junction

S THI

Superior thigh

M THI

Medial thigh

I THI

Inferior thigh

KNEE

KNEE

S CALF

Superior calf

M CALF

Medial calf

I CALF

Inferior calf

AAGSV

Anterior accessory great saphenous vein

PAGSV

Posterior accessory great saphenous vein

SAGSV

Superficial accessory great saphenous vein

DUP

Duplicate great saphenous vein

Post thigh

Posterior thigh circumflex

Ant thigh

Anterior thigh circumflex

SSV

Small saphenous vein

SPJ

Sapheno-popliteal junction

S CALF

Superior calf

M CALF

Medial calf

I CALF

Inferior calf

V Giac

Vein of giacomini

Deep thigh

Deep thigh extension

PERF

Perforators

 1

 2

 3

Varicose veins

Varicose veins

 1

 2

 3

 4

When present, the accessory saphenous veins lie in the saphenous compartment initially and are named for their relationship to the GSV. The anterior accessory great saphenous vein is found in 14% of individuals with varicose veins and usually lies anterior and lateral to the GSV.[13] In distinction, the posterior accessory great saphenous vein is less often seen, and courses medial and posterior to the GSV. The duplicate GSV is similar in size to the GSV, is located within the saphenous compartment, and is infrequently seen with 2% occurrence.[14] By contrast, the anterior and posterior thigh circumflex branches of the GSV lie superficial to the saphenous compartment.

In 30% of cases, the GSV may have a segmental hypoplastic or aplastic segment of variable length, particularly if there is a large subcutaneous tributary.[13] Studies have shown that the incidence of hypoplasia is higher in those with sapheno-femoral junction (SFJ) incompetence or varices.[15] The segmental aplasia/hypoplasia continuum classifies the GSV into four types: (1) single GSV, (2) segmental aplasia, (3) segmental hypoplasia, and (4) saphenous bow variation. Bow variation is further subdivided into three types based on take-off and reentry in the calf, thigh, or mid-leg. Insufficient segments can occur in the intracompartmental vein, extracompartmental vein, or both.[16]

The saphenous nerve lies in the saphenous compartment. It is the longest sensory branch of the femoral nerve and provides sensory supply to the medial knee, leg, and foot. Inferior to the adductor canal, in the calf, the GSV and nerve become more intimately associated.[17]

The SFJ, with its terminal and preterminal valves, is crucial for satisfactory hemodynamics and prevention of reflux from the common femoral vein. The location, valve competency, and diameter of the SFJ are documented ([Fig. 6]). The inferior epigastric vein inflow from the pelvis occurs just below the SFJ, and documentation of this drainage is crucial, particularly prior to intervention, as this inflow provides patency at the SFJ.[18] Additional drainage from the external pudendal and external circumflex iliac veins occurs in this region as well.[4]

Zoom Image
Fig. 6 Saphenofemoral junction measurement is in the longitudinal projection at the junction, which is superior to the inferior epigastric inflow.

Like the SFJ, the sapheno-popliteal junction (SPJ) has a terminal valve and preterminal valve. The SSV may terminate in the popliteal vein, or extend as a superficial or deep thigh extension. When the SSV continues as a superficial thigh extension, it is known as the vein of Giacomini, which most commonly joins the posterior thigh circumflex vein before entering the GSV, thereby becoming an intersaphenous vein.[13]

The tibial nerve, a motor and sensory nerve, is the largest terminal branch of the sciatic nerve. It is posterior to the popliteal vein and runs lateral to medial near the SPJ.[19] The sural nerve is a pure sensory nerve that is formed from branches of the tibial nerve. It is located adjacent to the SSV. The sural nerve gets closer to the SSV in the lower two-thirds of the calf, and, when able, is identified so that it can be avoided during treatment.[19]

Perforating veins connect the superficial and deep systems and are classified by their circumferential location (medial, lateral, posterior, or anterior) as well as their superior to inferior location (gluteal, thigh, knee, leg, ankle, or foot).[20] Tributary veins, by contrast, connect superficial to superficial veins, and their location is seen on an ultrasound ([Fig. 7]). Tributary veins can be large and may be the dominant drainage of the leg.[13] Varicose veins are tributary veins.

Zoom Image
Fig. 7 Template anatomy drawing of the deep and superficial venous systems used to annotate ultrasound findings including segmental areas of venous reflux. CFV, common femoral vein; DEEP FV, deep femoral vein; GASTRV, gastrocnemius vein; GSV, great saphenous vein; PERONV, peroneal vein; POPV, popliteal vein; PROF, deep femoral vein (formerly known as Profunda femoris vein); PT, posterior tibial; PTV, posterior tibial vein; SSV, small saphenous vein.

Before evaluating the pathology in the superficial system, the deep system is always initially interrogated for potential obstruction and reflux. The superficial system is then studied in its entirety for abnormal reflux, thrombosis, and vein size, which can be documented on an ultrasound ([Fig. 7]). Reflux is measured on pulse-wave Doppler ultrasound as seconds of reversed flow (above baseline) after augmentation. Reflux is abnormal if it is greater than 0.5 seconds for superficial and perforator veins, or 1 second for deep veins.[21] The exact time of reflux at each segment is recorded. Reflux is evaluated with calf augmentation below the vessel being imaged. Machine augmentation is an alternative to manual compression that can give steady constant pressure and release. Valsalva is acceptable to evaluate for obstruction and reflux at the common femoral vein and the SFJ, but not below these levels. Proper waveform and directionality must be demonstrated on Doppler ultrasound with a flow pattern of reflux above the baseline ([Fig. 8]). Additional findings may include lack of valve closure, venous blood stasis, and Rouleau phenomenon.

Zoom Image
Fig. 8 Venous reflux of 6 seconds in the great saphenous vein after manual calf augmentation, measured with cursor box in the direction of the blood flow, parallel to the vessel wall. The scale is adjusted according to the amplitude of flow.

Vein diameter is properly measured in transverse projection, from anterior to posterior, with grey scale ultrasound ([Fig. 9]). Cursors are accurately placed on the vein wall. Measurements are neither obtained at branch points nor with color Doppler because of blooming. Perforator vein diameter is measured as it traverses the deep fascia ([Fig. 10]). If the diameter for perforator veins is more than 3.5 mm, reflux is typically present.[22] Calcification of the vein wall, when seen, is also a sign of venous pathology.

Zoom Image

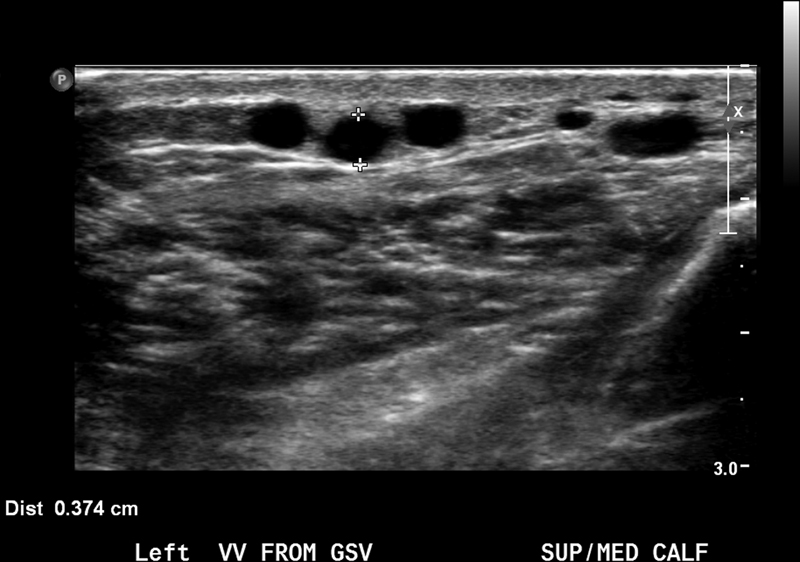

Fig. 9 Varicose vein on gray-scale ultrasound measured anterior to posterior in transverse projection, with cursor right on the vein wall.
Zoom Image
Fig. 10 Perforator veins are measured as they extend from the superficial into the deep system at the fascia and in perpendicular axis so that it is a true diameter, not in oblique.

#

Conclusion

A thorough history, including documentation of a VCSS-R; a complete physical exam with an up-to-date CEAP score; and a properly performed ultrasound exam are essential for a comprehensive venous evaluation. Each limb is evaluated and recorded separately. Duplex ultrasonography by a dedicated technologist is required not only for a thorough baseline evaluation but also to monitor response after therapy. Whether treating with conservative measures or planning for intervention, a systematic and standardized assessment is imperative.


#
#
