CC BY 4.0 · Endoscopy 2023; 55(S 01): E963-E964
DOI: 10.1055/a-2135-8682
E-Videos

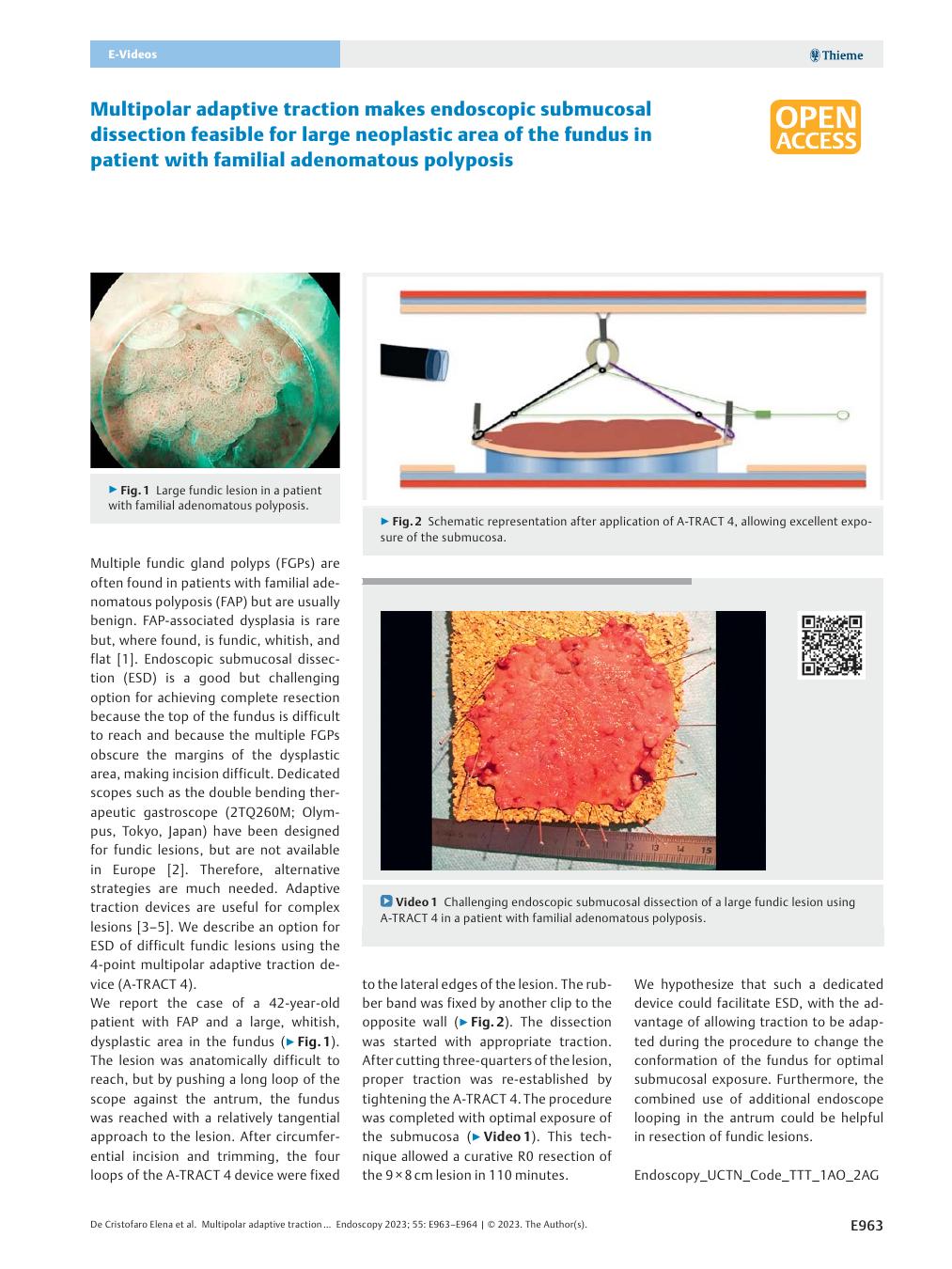

Multipolar adaptive traction makes endoscopic submucosal dissection feasible for large neoplastic area of the fundus in patient with familial adenomatous polyposis

Elena De Cristofaro
1   Gastroenterology Unit, Department of Systems Medicine, University of Rome Tor Vergata, Rome, Italy
,
Louis-Jean Masgnaux
2   Gastroenterology and Endoscopy Unit, Edouard Herriot Hospital, Hospices Civils de Lyon, Lyon, France
,
Jean-Christophe Saurin
2   Gastroenterology and Endoscopy Unit, Edouard Herriot Hospital, Hospices Civils de Lyon, Lyon, France
,
Jérémie Jacques
3   Gastroenterology and Endoscopy Unit, Dupuytren University Hospital, Limoges, France
,
Bertrand Napoléon
4   Gastroenterology and Endoscopy Unit, Mermoz Hospital, Lyon, France
,
Jérôme Rivory
2   Gastroenterology and Endoscopy Unit, Edouard Herriot Hospital, Hospices Civils de Lyon, Lyon, France
,
Mathieu Pioche
2   Gastroenterology and Endoscopy Unit, Edouard Herriot Hospital, Hospices Civils de Lyon, Lyon, France
› Author Affiliations
› Further Information
Also available at
   Permissions and Reprints

Multiple fundic gland polyps (FGPs) are often found in patients with familial adenomatous polyposis (FAP) but are usually benign. FAP-associated dysplasia is rare but, where found, is fundic, whitish, and flat [1]. Endoscopic submucosal dissection (ESD) is a good but challenging option for achieving complete resection because the top of the fundus is difficult to reach and because the multiple FGPs obscure the margins of the dysplastic area, making incision difficult. Dedicated scopes such as the double bending therapeutic gastroscope (2TQ260M; Olympus, Tokyo, Japan) have been designed for fundic lesions, but are not available in Europe [2]. Therefore, alternative strategies are much needed. Adaptive traction devices are useful for complex lesions [3] [4] [5]. We describe an option for ESD of difficult fundic lesions using the 4-point multipolar adaptive traction device (A-TRACT 4).

We report the case of a 42-year-old patient with FAP and a large, whitish, dysplastic area in the fundus ([Fig. 1]). The lesion was anatomically difficult to reach, but by pushing a long loop of the scope against the antrum, the fundus was reached with a relatively tangential approach to the lesion. After circumferential incision and trimming, the four loops of the A-TRACT 4 device were fixed to the lateral edges of the lesion. The rubber band was fixed by another clip to the opposite wall ([Fig. 2]). The dissection was started with appropriate traction. After cutting three-quarters of the lesion, proper traction was re-established by tightening the A-TRACT 4. The procedure was completed with optimal exposure of the submucosa ([Video 1]). This technique allowed a curative R0 resection of the 9 × 8 cm lesion in 110 minutes.

Zoom Image
Fig. 1 Large fundic lesion in a patient with familial adenomatous polyposis.
Zoom Image
Fig. 2 Schematic representation after application of A-TRACT 4, allowing excellent exposure of the submucosa.

Video 1 Challenging endoscopic submucosal dissection of a large fundic lesion using A-TRACT 4 in a patient with familial adenomatous polyposis.


Quality:

We hypothesize that such a dedicated device could facilitate ESD, with the advantage of allowing traction to be adapted during the procedure to change the conformation of the fundus for optimal submucosal exposure. Furthermore, the combined use of additional endoscope looping in the antrum could be helpful in resection of fundic lesions.

Endoscopy_UCTN_Code_TTT_1AO_2AG

Endoscopy E-Videos
https://eref.thieme.de/e-videos

E-Videos is an open access online section of the journal Endoscopy, reporting on interesting cases and new techniques in gastroenterological endoscopy. All papers include a high-quality video and are published with a Creative Commons CC-BY license. Endoscopy E-Videos qualify for HINARI discounts and waivers and eligibility is automatically checked during the submission process. We grant 100% waivers to articles whose corresponding authors are based in Group A countries and 50% waivers to those who are based in Group B countries as classified by Research4Life (see: https://www.research4life.org/access/eligibility/).

This section has its own submission website at https://mc.manuscriptcentral.com/e-videos



Publication History

Article published online:
21 August 2023

© 2023. The Author(s). This is an open access article published by Thieme under the terms of the Creative Commons Attribution License, permitting unrestricted use, distribution, and reproduction so long as the original work is properly cited. (https://creativecommons.org/licenses/by/4.0/)

Georg Thieme Verlag KG
Rüdigerstraße 14, 70469 Stuttgart, Germany

Comment to this article:

Endoscopy E-Videos – recently publishedEndoscopy 2023; 55(12): 1147-1147
DOI: 10.1055/a-2178-9714



  • References

  • 1 Calavas L, Rivory J, Hervieu V. et al. Macroscopically visible flat dysplasia in the fundus of 3 patients with familial adenomatous polyposis. Gastrointest Endosc 2016; 85: 679-680
    CrossrefPubMedSearch in Google Scholar
  • 2 Jang JY. Future development of endoscopic accessories for endoscopic submucosal dissection. Clin Endosc 2017; 450: 242-249
    CrossrefPubMedSearch in Google Scholar
  • 3 Masgnaux L-J, Grimaldi J, Legros R. et al. Endoscopic submucosal dissection in the colon using a novel adjustable traction device: A-TRACT-2. Endoscopy 2022; 54: E988-E989
    Search in Google Scholar
  • 4 Grimaldi J, Masnaux L, Wallenhorst T. et al. Endoscopic submucosal dissection of a quasi-circumferential lesion of the ileo-cecal valve by using a novel adjustable traction device. Endoscopy 2023; 55 (Suppl. 01) 574-575
    Thieme ConnectPubMedSearch in Google Scholar
  • 5 Grimaldi J, Masgnaux L-J, Rivory J. et al. Multipolar traction with adjustable force increases procedure speed during endoscopic submucosal dissection: the A-TRACT-4 traction device. Endoscopy 2022; 54: E1013-E1014
    Search in Google Scholar
