Introduction
The knowledge of anatomy and normal variants is a necessary requisite for the understanding
of pathological processes in radiology. The radiological findings are complementary
to the clinical features and pathology. The sphenoid bone is non-pneumatized and contains
only red marrow at birth. Sphenoid pneumatization occurs in two peaks after conversion
to the fatty marrow; first from birth to four years and the second between 8 to 12
years of age.[1] The sphenoid sinus (SS) shows signs of pneumatization as early as nine months of
age. SS pneumatization shows slow development between and after peak years to reach
up to the back of sella turcica by seven years and attains adult volumes by 12 to
15 years of age.[2],[3],[4] The SS is the most inconsistent and least accessible paranasal sinus with variations
in pneumatization ranging from minimal to extensive.[5] The SS shows variations in size, pneumatization, and pattern of septations, which
lead to differences in the segmentation of SS. The pneumatization can extend into
the greater wing of sphenoid, pterygoid process, clivus, and sometimes into the anterior
clinoid process.[6],[7]
Diverse pathologies affecting the sellar and parasellar regions and extended approaches
of trans nasal endoscopic procedures to lesions affecting the floor of the middle
cranial fossa, petrous apex, and pituitary lesions highlight the necessity to recognize
the anatomical variations and neurovascular structures in relation to SS.[8],[9] The assessment of variations in pneumatization of SS is essential, yet there is
lack of an in-depth study in the Indian population, while the prevalence has been
well reported in different ethnic populations.[10],[11],[12],[13]
The knowledge of these variants and their implications allows us to highlight their
presence to the surgeon and aid in optimal patient selection, intraoperative guidance,
predicting the complications of intracranial lesions, and minimize the iatrogenic
complications in surgical practice. This study aims at identifying the prevalence
of variations in the extent of pneumatization in the SS, comparing the results with
the existing literature with an emphasis on the need to be aware of the variations
in pneumatization.
Materials and Methods
Study participants
The Institute Ethics Committee approved this retrospective study. The study group
included multi-detector computed tomography (CT) of paranasal sinuses of 500 consecutive
patients performed between August 2016 and August 2017 after exclusion of those with
facial trauma or history of surgery leading to alterations in normal anatomy, those
with sinonasal tumors or younger than 16 years of age. Patients with extensive rhinosinusitis
causing bony rarefaction were also excluded from the study.
Image acquisition
All the subjects underwent CT of the paranasal sinus with a standardized protocol.
The axial CT was performed with 128 multislice scanner (Optima 660, GE Healthcare)
using 120 KV and 110 mAs with a 0.6-mm slice thickness. Continuous axial sections
were obtained parallel to the orbitomeatal line. The multiplanar reformatted images
were analyzed on Z820 workstation.
Image analysis
Based on the images acquired by CT, they were assessed for the following variables
as described: type of pneumatization of SS, type of clival, lateral, lesser wing,
and anterior recess extensions of SS.[10],[11]
Classification of types of pneumatization of SS
The SS was classified into conchal, presellar, and sellar (incomplete and complete)
types based on the relation to anterior and posterior walls of sella turcica on the
sagittal plane [Figure 1] and [Figure 2]. The extension of pneumatization into the clivus was classified into subdorsal,
dorsal, occipital, and combined (dorsal + occipital) types based on relation to the
posterior wall, the floor of sella, and vidian canal [Figure 3] and [Figure 4]. The lateral extension of pneumatization was classified into the greater wing of
the sphenoid, pterygoid, and full lateral (greater wing + pterygoid) extension based
on the line connecting the medial aspects of foramen rotundum and vidian canal (VR
Line) [Figure 5]A, [Figure 5]B, [Figure 5]C and [Figure 6]A. The lesser wing extension was said to be present when there was an extension into
either optic strut, lesser wing or anterior clinoid process [Figure 5]D and [Figure 6]A; and the anterior recess type when the anterior wall of the sinus extended anteriorly
beyond the plane of the sphenoidal crest [Figure 6]B.{Figure 1}{Figure 2}{Figure 3}{Figure 4}{Figure 5}{Figure 6}
Figure 1 (A-D): Types of sphenoid pneumatization. Pictorial representation with vertical
lines drawn along the anterior (orange line) and posterior walls (blue line) of the
sella. (A) Conchal type; pneumatization >10 mm anterior to the anterior wall of sella.
(B) Presellar type; the posterior margin of pneumatization anterior to the anterior
wall. (C) Incomplete sellar; the posterior margin of pneumatization beneath the sella,
but anterior to the posterior wall of sella. (D) Complete sellar; the posterior margin
of pneumatization, posterior to the posterior wall of sella
Figure 2 (A-D): Midsagittal images of sphenoidal sinus demonstrating conchal type
(A), presellar type (B), incomplete sellar type (C), and complete sellar type (D)

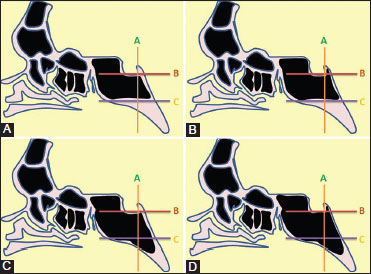

Figure 3 (A-D): Types of Clival extension. Pictorial representation with horizontal
lines at the inferior margin of sella (brown line) and along the vidian canal (purple
line), and vertical line (orange line) along the posterior wall of sella. 3A – Subdorsal;
Pneumatization not extending above the inferior margin of sella or below the level
of the vidian canal. 3B – Dorsal; Pneumatization extending superiorly into the dorsum
sella. 3C – Occipital; Pneumatization extending inferior to the level of the vidian
canal. 3D – Combined; Dorsal + Occipital
Figure 4 (A-D): Midsagittal images of sphenoidal sinus demonstrating subdorsal type
(A), dorsal type (B), occipital type (C), and combined type (D)
Figure 5 (A-D): Types of lateral and lesser wing extension. Pictorial representation
with a line drawn along the medial margins of foramen rotundum and vidian canal (orange
line) on both sides. (A) Pterygoid; pneumatization extending inferior to the vidian
canal on the right side into the pterygoid process. (B) Greater wing of sphenoid;
pneumatization extending laterally into greater wing of sphenoid on the left side,
beyond the foramen rotundum. (C) Full lateral; pterygoid + lateral on left side. (D)
Lesser wing; pneumatization extending into the anterior clinoid process on the right
side
Figure 6 (A and B): Lateral, lesser wing and anterior extensions. (A) The coronal
section of sphenoid sinus showing greater wing extension (arrow head), pterygoid extension
(asterisk) and lesser wing extension (notched arrow). (B) The extension of pneumatization
anterior to sphenoidal crest (white line), i.e., sphenoethmoidal recess on the left
side (asterisk)
Statistical methods
Statistical analysis of all the data sets was performed with SPSS, Version 22 (IBM,
Armonk, New York). The types of pneumatization of SS and extensions were compiled
and utilized to determine the prevalence of various categories. The P value of < 0.05 indicated a significant statistical difference in Chi-square test.
Results
A total of 500 patients were assessed with CT, whose ages were ranging from 16 to
87 years with a mean of 43.13 ± 17.39. The study population comprised 43.4% females
(217) and 56.6% male patients (283). There is no significant statistical difference
in prevalence of pneumatization patterns between male and female subjects.
Sphenoid sinus
There were no patients with conchal type, 1.2% (6) of patients with presellar type,
22.2% (111) of patients with incomplete sellar type, and 76.6% (383) of patients with
a complete sellar type of pneumatization [Table 1].
Table 1
Prevalence of types of sphenoid sinus pneumatization (500 CT scans)
Type
|
Number of individuals
|
Percentage
|
Conchal
|
0
|
0
|
Presellar
|
6
|
1.2
|
Incomplete sellar
|
111
|
22.2
|
Complete sellar
|
383
|
76.6
|
Clival extension
The clival extension was seen in 76.6% of the sinuses. Of the 383 sinuses with clival
extension, the most common form was the subdorsal type (65%, 325 patients), followed
by dorsal (4%, 20 patients), occipital (3.8%, 19 patients), and combined type (3.8%,
19 patients) of clival pneumatization [Table 2] and [Table 3].
Table 2
Extensions of sphenoid pneumatization on CT (500 patients and 1000 sides)
Pneumatization extension
|
Number of sides
|
Percentage
|
Clival extension (Patients)
|
383
|
76.6
|
Lateral extension (Sides)
|
597
|
59.7
|
Anterior clinoid/Optic strut (Sides)
|
204
|
20.4
|
Sphenoethmoidal recess (Sides)
|
204
|
20.4
|
Table 3
Extensions of sphenoid pneumatization on CT (500 patients and 1000 sides)
Pneumatization extension
|
Number of sinuses
|
Percentage
|
Clival extension (383 patients)
|
Subdorsal
|
325/383
|
84.8
|
Dorsal
|
20/383
|
5.2
|
Occipital
|
19/383
|
5
|
Combined (Dorsal + Occipital)
|
19/383
|
5
|
Lateral extension (597 sinus)
|
Pterygoid
|
313/597
|
52.4
|
Greater wing
|
11/597
|
1.8
|
Full lateral
|
273/597
|
45.7
|
Lateral extension
The lateral extension was found in 597 (59.7%) of the 1000 sinus walls evaluated on
CT. Among the 597 sinuses with a lateral extension, the pterygoid extension was most
common, seen in 313 (52.4%); followed by full lateral extension seen in 273 (45.7%)
with greater wing of the sphenoid extension being the least, seen in 11 (1.8%) [Table 2] and [Table 3]. There was a statistically significant difference in the lateral extension between
the left and right sides, with extension commonly on the left side (P < 0.01).
Lesser wing extension and anterior recess
The sinus with a lesser wing pneumatization had extension into either optic strut
or anterior clinoid process. The lesser wing type of pneumatization was found in 204
(20.4%) of the sinuses examined on imaging. The optic canal was surrounded by the
sphenoid air cells in lesser wing type of pneumatization. The anterior recess was
found in 204 (20.4%) of the 1000 sinuses [Table 2].
Pure and combined forms of pneumatization
The pure subtypes of pneumatization were seen in 25.4% (254 sides) and the combined
forms of pneumatization in 61% (610 sides). The common form was isolated clival extension
seen in 18%, followed by pure lateral in 4.3%, isolated anterior recess in 2% with
isolated lesser wing extension being the least common, seen in 1%. The combined forms
of sphenoid pneumatization are as shown in [Table 4].
Table 4
Types of combined sphenoid sinus based on computed tomography
Combined type (610 sides)
|
Number of individuals
|
Percentage
|
Clival + Lateral
|
286
|
46.8
|
Clival + Lateral + Lesser Wing
|
114
|
18.7
|
Clival + Lateral + Anterior
|
90
|
14.7
|
Clival + Lateral + Lesser Wing + Anterior
|
41
|
6.7
|
Clival + Anterior
|
34
|
5.6
|
Clival + Lesser Wing
|
13
|
2.1
|
Lateral + Lesser Wing
|
13
|
2.1
|
Clival + Lesser Wing + Anterior
|
7
|
1.1
|
Lateral + Anterior
|
6
|
1
|
Lateral + Lesser Wing + Anterior
|
4
|
0.6
|
Lateral + Anterior
|
2
|
0.3
|
Lesser Wing + Anterior
|
2
|
0.3
|
Discussion
The sphenoid sinuses were classified into conchal, presellar, and sellar types initially
by Hammer and Radberg,[14] a widely accepted classification as it predicts the surgical corridor used in transsphenoidal
surgeries. Guldner et al. subdivided the sellar type into incomplete and complete types based on the extension
of the pneumatization beyond the posterior wall of the sella.[15] The modifications and the traditional system focus on the posterior extent of pneumatization
and the ease of accessibility of the sellar floor during endoscopic surgeries.
The study of pneumatization patterns of SS has gained added importance due to newer
developments in transsphenoidal sinus surgeries and its utility in accessing the lesions
involving middle cranial fossa, retroclival region, and foramen magnum. Wang et al.[10] expanded the classification system based on anatomical and imaging studies to include
the lateral and anterior extension to access possible sites in extended transsphenoidal
sinus surgery. The pneumatization of SS in our study showed differences from those
reported previously in literature as discussed below [Table 5].
Table 5
Comparison of prevalence of sphenoid sinus types and clival pneumatization
Sphenoid sinus types
|
Conchal
|
Presellar
|
Sellar
|
Postsellar
|
P
|
Caucasian
|
Hamid et al. 2008
|
6
|
62
|
162
|
66
|
<0.001
|
Wang et al. 2010
|
0
|
2
|
98
|
|
|
Lupascu et al. 2014
|
6
|
56
|
138
|
|
|
Sevinc et al. 2014
|
3
|
102
|
511
|
|
|
Vaezi et al. 2014
|
3
|
24
|
75
|
|
|
Total
|
18 (1.3%)
|
246 (18.7%)
|
1050 (79.9%)
|
|
|
East Asian
|
Li et al. 2010
|
5
|
80
|
175
|
|
|
Lu et al. 2011
|
12
|
57
|
131
|
|
|
Anusha et al. 2015
|
1
|
20
|
279
|
|
|
Total
|
18 (2.3%)
|
157 (20.6%)
|
585 (76.9%)
|
|
|
Indian
|
Our study
|
0
|
6
|
111
|
383
|
|
Total
|
0 (0%)
|
6 (1.2%)
|
494 (98.8%)
|
|
|
Clival pneumatization
|
Subdorsal
|
Dorsal
|
Occipital
|
Complete
|
|
Caucasian
|
|
|
|
|
|
Wang et al. 2010
|
43 (63.2%)
|
16 (23.5%)
|
1 (1.5%)
|
8 (11.8%)
|
<0.001
|
Chinese
|
|
|
|
|
|
Lu et al. 2011
|
64 (72%)
|
11 (12.3%)
|
13 (14.6%)
|
1 (1.1%)
|
|
Indian
|
|
|
|
|
|
Our study
|
325 (84.8%)
|
20 (5.2%)
|
19 (5%)
|
19 (5%)
|
|
|
Comparison of prevalence of Sphenoid sinus pneumatization extensions
Firstly, among the published studies from the Caucasian and East Asian populations,
the overall prevalence of conchal type was 1 to 2%. [10],[11],[12],[16],[17],[18],[19],[20] However, there were no patients with a conchal type of pneumatization in our study.
There was a significant difference in the presellar type of pneumatization with overall
prevalence ranging between 18.7 and 20.6% in previous literature to 1.2% in our study,
highlighting that a lesser degree of pneumatization occurs commonly in the Caucasian
and East Asian populations. Even though the sellar type of pneumatization was the
most prevalent type in all populations, it was highest in our study (98.8%) compared
to the overall prevalence of 76.9–79.9% in the previously published literature. There
was a statistically significant difference in types of SS with P < 0.01, suggesting extensive pneumatization of SS in our population.
Secondly, the subdorsal type of clival pneumatization was the most prevalent subtype
ranging from 63.2 to 84.8%, being highest in our study. There was a difference in
the prevalence of other subtypes with the least common subtype being occipital in
the study by Wang et al. (Caucasian) and complete in the study by Lu et al. (Chinese). Both occipital and complete types were less common in our study. There
was a statistically significant difference in prevalence of subtypes of clival pneumatization
with P < 0.01. The lateral extension was seen in 28.3% in the Chinese, 46% in the Caucasian,
and 59.7% in our study. The bony pneumatization also differed in lesser wing of sphenoid
extension (12% in Chinese, 32% in Caucasian, and 20.4% in our study).
Thirdly, there were differences in pure and combined forms of sphenoid pneumatization
as well. The difference in the prevalence of pure clival forms (21.4% in Chinese,
11.2% in Caucasian, and 18.1% in our study); pure lateral and lesser wing extensions
(11.4% and 0.8% in Chinese with similar prevalence rates in Caucasian, 4.3% and 1%
in our study). By contrast, the combined forms of SS were more frequent in our study
(61%), compared to 59.2% in Caucasian and 48.1% in Chinese population. This epidemiological
study of pneumatization patterns of SS highlights its variability in different populations
and confirms with the existing literature that ethnicity influences the differences
in prevalence.[21]
Clinical and surgical implications of sphenoid sinus pneumatization
The arrested and under pneumatization of SS is uncommon in our population. Cystic
fibrosis and sickle cell disease are commonly associated with arrested pneumatization
and underdeveloped paranasal sinuses than in the general population. The presence
of such variants should highlight the likely etiology in appropriate clinical settings.[22],[23] Nonpneumatized and conchal pneumatization are less favorable for a transsphenoidal
approach to sellar and parasellar lesions. These subtypes require drilling and removal
of thick cancellous bone, resulting in an increased operative time. However, access
to sella is safe with the availability of intraoperative navigation after confirmation
of surgical landmarks in these subtypes.[24],[25]
The hyperpneumatization of SS not only allows extended approaches of transsphenoidal
surgeries but also increases the likelihood of collision between operative instruments
and chances of iatrogenic injuries. The posterior extension of aeration into the clivus,
dorsum sella, and anterior extension into planum sphenoidale may result in an inadvertent
damage to the bony walls of the sphenoid sinus, resulting in cerebrospinal fluid (CSF)
leaks.[16] The bony dehiscence and protrusion of the adjacent neurovascular structures into
the SS increase in proportion to the pneumatization.[26],[27] The lesser wing extension leads to the protrusion and thinning of bony wall of the
optic nerve and internal carotid artery, thereby increasing susceptibility to injury
during endoscopic surgeries [Figure 7]A and [Figure 7]B.[27] The extension into the clinoid process needs a special mention in presurgical evaluation
of sellar–suprasellar masses and periclinoid aneurysms to avoid post-surgical CSF
leaks [Figure 8].[28] The lateral extension into the pterygoid process and greater wing of sphenoid also
render maxillary nerve, vidian nerve, and carotid artery susceptible to iatrogenic
injury [Figure 7]C.[29],[30] Such individuals can also present with vidian and or maxillary neuralgia as a complication
of inflammatory sinus disease. Extensive pneumatization of the SS and lateral recess
increases susceptibility to bony erosion and spontaneous CSF leaks in idiopathic intracranial
hypertension and extension of sellar and parasellar lesions into SS [Figure 9] and [Figure 10].[31],[32] The radiology template that can be included in the paranasal sinus CT reporting
for assessment of sphenoid sinus pneumatization is shown in [Supplementary Table 1].
Figure 7 (A-C): Intrasphenoid course of optic nerve, internal carotid artery, and
maxillary nerve. (A) Coronal CT showing clinoid extension of pneumatization with optic
nerve coursing through sphenoid sinus. (B) Axial CT showing intrasphenoid extension
of internal carotid artery. (C) Coronal CT showing intrasphenoid extension of maxillary
nerve
Figure 8 (A-C): Coronal T2W (A), TOF angiography (B), and CT of sphenoid sinus in
bone window (C) showing left internal carotid artery aneurysm involving cavernous
segment (arrow head) causing bony remodeling of lateral sphenoid wall (arrows)
Figure 9 (A and B): Coronal CT cisternography (A) and axial FIESTA (B) in a patient
with idiopathic intracranial hypertension showing bony erosion involving lateral wall
of sphenoid sinus with herniation of medial temporal lobe suggesting sphenoidal encephalocele
(arrow head)
Figure 10 (A and B): Coronal CT in brain window (A) and post-contrast T1W (B) images
showing erosion of sellar floor and intrasphenoid extension of pituitary macroadenoma
Although we have extensively studied on SS pneumatization in the Indian population,
our study has a few limitations:First, the inclusion of relatively asymptomatic patients
in this retrospective study. Although few studies describe pneumatization in pathological
conditions, we require further studies to ascertain the role of pneumatization in
chronic sinusitis as well as post-operative outcomes and prognosis in sellar pathologies.[33],[34] Second, the correlation between the extent of pneumatization of the SS, dehiscence,
and protrusion of adjacent neurovascular structures into SS were not assessed in this
study. Further studies concerning this topic are needed to ascertain the association.
Conclusion
This study describes extensive clival and lateral extension of sphenoid sinus pneumatization
with an increased prevalence of combined forms in the Indian population compared to
other ethnic population. Although extensive pneumatization of sphenoid sinus facilitates
extended approaches of transsphenoidal endoscopic surgeries, it poses an increased
risk of iatrogenic complications such as neurovascular injuries and CSF leaks, the
higher propensity of bony erosion, and sinus extension of sellar and parasellar mass
lesions in our population. Radiologists need to be aware of these variations and include
them in routine reporting templates.
