CC BY-NC-ND 4.0 · Int Arch Otorhinolaryngol 2021; 25(02): e255-e257
DOI: 10.1055/s-0040-1712935
Original Research

Zuma Modified Maneuver as a Treatment to Geotropic Lateral Semicircular Canal Benign Paroxysmal Positional Vertigo

Bernardo Faria Ramos
1   Department of Otorhinolaryngology, Universidade Federal do Espírito Santo, Vitoria, ES, Brazil
,
Renato Cal
2   Department of Otorhinolaryngology, Universidade Federal do Pará, Belem, PA, Brazil
,
Camila Martins Brock
3   Department of Otorhinolaryngology, Pontifícia Universidade Católica, INSCER, Rio Grande do Sul, Porto Alegre, RS, Brazil
,
4   Department of Otorhinolaryngology, Universidade Federal de São Paulo, São Paulo, SP, Brazil
,
Francisco Zuma e Maia
3   Department of Otorhinolaryngology, Pontifícia Universidade Católica, INSCER, Rio Grande do Sul, Porto Alegre, RS, Brazil
› Institutsangaben


Abstract

Introduction Benign Paroxysmal Positional Vertigo (BPPV) is the most common vestibular disorder, resulting from detached otoliths that migrate to one of the semicircular canals – canalolithiasis – or one of the cupulas – cupulolithiasis. The present study is related to lateral canal BPPVs, which may be either geotropic or apogeotropic. The geotropic variant of lateral semicircular canal benign paroxysmal positional vertigo (LC-BPPV) is attributed to free floating particles in the posterior arm of the lateral semicircular canal.

Objectives To verify the possibility of employing the Zuma repositioning maneuver, with a brief modification, as an alternative treatment for geotropic LC-BPPV.

Methods Seven patients with geotropic LC-BPPV were enrolled and treated with the Zuma modified maneuver. Patients were reevaluated 1 hour after a single maneuver, to confirm the resolution of vertigo and positional nystagmus.

Results All seven patients achieved immediate resolution of vertigo and positional nystagmus as measured 1 hour after the application of the maneuver.

Conclusion The Zuma modified maneuver was effective for geotropic LC-BPPV after a single application. The use of the Zuma maneuver for both apogeotropic and geotropic LC-BPPV may simplify the treatment of these patients.


#

Introduction

Benign paroxysmal positional vertigo (BPPV) is the most common vestibular disorder, resulting from detached otoliths that migrate to one of the semicircular canals – canalolithiasis – or one of the cupulas – cupulolithiasis. The posterior semicircular canals are the most commonly affected by these disorders, but lateral canals are also frequent sites; anterior semicircular canal BPPV (LC-BPPV) is less frequent. The present study is related to LC-BPPVs (LC-BPPV), which may be either geotropic or apogeotropic. The Zuma maneuver was initially designed to treat apogeotropic LC-BPPV.

The geotropic variant of LC-BPPV is attributed to free floating particles in the posterior arm of the lateral semicircular canal. It is characterized by horizontal nystagmus beating to the side of the head turn in the supine roll test. On the other hand, the apogeotropic variant of LC-BPPV is attributed to free floating particles in the anterior arm of the lateral semicircular canal, particles attached to the cupula facing the canal or particles attached to the cupula facing the utricule. It is characterized by horizontal nystagmus beating to the opposite side of the head turn in the supine roll test.[1] [2] [3]

Different types of reposition maneuvers have been proposed for the management of geotropic and apogeotropic LC-BPPV: Gufoni maneuver, Zuma maneuver, Forced Prolonged Position (Vannucchi Technique) and Barbecue Rotation (Lempert maneuver, Vannucchi-Asprella maneuver).[4] [5] [6] [7] [8] [9]

For practical reasons, since there are several types of reposition maneuvers described for LC-BPPV, it was felt that the Zuma maneuver, with a brief modification (Zuma modified maneuver) could be an alternative treatment for geotropic LC-BPPV.


#

Methods

The Zuma modified maneuver proposed to geotropic LC-BBPV was based on the 3D biomechanical model designed by Rajguru et al,[10] [11] as the original maneuver. The present study was approved by the Ethics Committee (protocol number CAEE 06137012.3.2002.5349).

A retrospective study was conducted on seven consecutive patients who were diagnosed with geotropic LC-BPPV, all without a history of trauma or concomitant neurotological disease. [Table 1] gives information on the patients, as well as the affected sides.

Table 1

Age, Gender and Affected Side of the Patients

Patient

Age in Years

Gender

Affected side

1

48

female

left

2

59

female

left

3

68

male

left

4

52

female

left

5

67

female

right

6

58

female

left

7

63

male

right

Benign paroxysmal positional vertigo was diagnosed when characteristic horizontal nystagmus was demonstrated in the supine head roll test or in the McClure–Pagnini test and the Seated Supine Positioning Test (SSPT)[12] [13] using a Video Frenzel goggle (Interacoustics, Middelfart, Denmark). The McClure-Pagnini test was performed by turning the head ∼ 90° to each side in the supine position. Since it is performed on the yaw plane, it should be more correct to call it the head yaw test (HYT) while supine.[14] [15] In the SSPT, the patient is briskly brought from the seated position to the supine position.[12] [13]

All of the patients were treated with the Zuma modified maneuver. The modification from the original maneuver is a head turning 45° to the unaffected side, in the sitting position (step I). Then, the patient is asked to lie down on the affected side (step II). Next, the patient moves into dorsal decubitus and the head is turned 45° toward the unaffected side (step III). After that, the head is turned 90° toward the unaffected side (step IV). Finally, the patient’s head is tilted slightly forward, followed by a slow return to the sitting position (step V) ([Fig. 1]). There is no age limit for the use of this maneuver.

Zoom Image

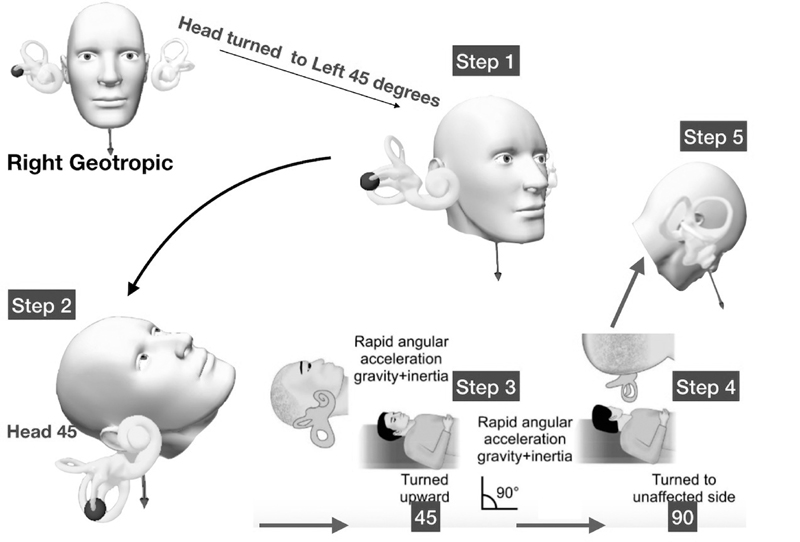

Fig. 1 The modification from the original maneuver is a head turning 45° to the unaffected side in the sitting position (step I). Then the patient is asked to lie down on the affected side (step II). Next, the patient moves into dorsal decubitus and the head is turned 45° toward the unaffected side (step III). After that, the head is turned 90° toward the unaffected side (step IV). Finally, the patient’s head is tilted slightly forward, followed by a slow return to the sitting position (step V). Data modified from Zuma e Maia 2016.[5]

After the performance of the modified Zuma maneuver, its immediate therapeutic efficacy was determined by the same neurotologist. Patients were reevaluated 1 hour after a single maneuver, to confirm the resolution of vertigo and positional nystagmus.


#

Results

All seven patients achieved immediate resolution of vertigo and positional nystagmus as measured 1 hour after the application of the maneuver.


#

Discussion

We suggest that the Zuma maneuver with a brief modification (Zuma modified maneuver) could be an alternative treatment for the geotropic variant of LC-BPPV.

There are several types of maneuvers described to treat LC-BPPV, and some of them have to be performed toward the unaffected side of the patient (i.e., Guffoni maneuver)[4] and others toward the affected side (i.e., Zuma maneuver).[5] A single maneuver with a brief modification, for both geotropic and apogeotropic LC-BPPV, could simplify the treatment of these cases, following the concept that the repositioning of the otoliths should be performed from the affected side toward the healthy side.

The modification from the original maneuver consists in a 45° head turning to the unaffected in the sitting position (step I). Hence, when the patient is lied down toward the affected side (step II), the lateral canal is placed in a vertical plane and the otoliths start moving away from the ampulla into the posterior arm. In the, when the head is turned 90° toward the unaffected side, the posterior arm of the canal is placed in the vertical plane, making the otoliths move away from the ampulla, through the posterior arm of the canal, in the direction of the utricule. The head tilting that is also performed in the original maneuver prevents the particles from moving back to the canal.

As the particles are free floating on the canal, there is no need of the brisk acceleration that is used to detach the otoliths from the cupula in cases of cupulolithiasis. There is also no need to wait for 3 minutes in each position, like in the original maneuver, for the same reason.


#

Conclusion

Despite the small sample of patients, the Zuma modified maneuver was effective for geotropic LC-BPPV after a single application. Further studies, however, are needed to evaluate the efficacy of this maneuver. The use of the Zuma maneuver for both apogeotropic and geotropic LC-BPPV may simplify the treatment of these patients.


#
#

Conflict of Interests

The authors have no conflict of interests to declare.

Note

Approved by the Ethical Committee of the Universidade Luterana Brasileira (ULBRA RS, in the Portuguese acronym), Canoas, Brazil – CAEE 06137012.3.2002.5349.


Contributions

All authors contributed equally.


  • References

  • 1 Schubert MC. Stop the world – I want to get off. Vestibular SIG Newsletter. BPPV Special Ed 2013: 17
  • 2 Baloh RW, Yue Q, Jacobson KM, Honrubia V. Persistent direction-changing positional nystagmus: another variant of benign positional nystagmus?. Neurology 1995; 45 (07) 1297-1301
  • 3 Steddin S, Ing D, Brandt T. Horizontal canal benign paroxysmal positioning vertigo (h-BPPV): transition of canalolithiasis to cupulolithiasis. Ann Neurol 1996; 40 (06) 918-922
  • 4 Mandalà M, Pepponi E, Santoro GP. et al. Double-blind randomized trial on the efficacy of the Gufoni maneuver for treatment of lateral canal BPPV. Laryngoscope 2013; 123 (07) 1782-1786
  • 5 Zuma e Maia F. New treatment strategy for apogeotropic horizontal canal benign paroxysmal positional vertigo. Audiology Res 2016; 6 (02) 163
  • 6 Ramos BF, Cal R, Brock CM, Albernaz PLM, Maia FZE. Apogeotropic variant of horizontal semicircular canal benign paroxysmal positional vertigo: Where are the particles?. Audiology Res 2019; 9 (02) 228
  • 7 Asprella Libonati G, Gagliardi G, Cifarelli D, Larotonda G. “Step by step” treatment of lateral semicircular canal canalolithiasis under videonystagmoscopic examination. Acta Otorhinolaryngol Ital 2003; 23 (01) 10-15
  • 8 Lempert T, Tiel-Wilck K. A positional maneuver for treatment of horizontal-canal benign positional vertigo. Laryngoscope 1996; 106 (04) 476-478
  • 9 Vannucchi P, Asprella-Libonati G, Gufoni M. The physical treatment of lateral semicircular canal canalolithiasis. Audiol Med 2005; 3: 52-56
  • 10 Rajguru SM, Ifediba MA, Rabbitt RD. Biomechanics of horizontal canal benign paroxysmal positional vertigo. J Vestib Res 2005; 15 (04) 203-214
  • 11 Rajguru SM, Ifediba MA, Rabbitt RD. Three-dimensional biomechanical model of benign paroxysmal positional vertigo. Ann Biomed Eng 2004; 32 (06) 831-846
  • 12 Nuti D, Vannucchi P, Pagnini P. Lateral canal BPPV: Which is the affected side?. Audiol Med 2005; 3: 16-20
  • 13 Asprella Libonati G. Diagnostic and treatment strategy of lateral semicircular canal canalolithiasis. Acta Otorhinolaryngol Ital 2005; 25 (05) 277-283
  • 14 Pagnini P, Nuti D, Vannucchi P. Benign paroxysmal vertigo of the horizontal canal. ORL J Otorhinolaryngol Relat Spec 1989; 51 (03) 161-170
  • 15 Nuti D, Vannucchi P, Pagnini P. Benign paroxysmal positional vertigo of the horizontal canal: a form of canalolithiasis with variable clinical features. J Vestib Res 1996; 6 (03) 173-184
  • 16 MacDougall H, Rogers S. AVOR – Angular Vestibulo-Ocular Reflex. Available from: http://www.psych.usyd.edu.au/HumanFactors/?page_id=2160

Address for correspondence

Prof. Dr. Pedro L. Mangabeira Albernaz, MD, PhD
Department of Otorhinolaryngology, Universidade Federal de São Paulo
Av. Albert Einstein, 627, Pavilion A1, Room 117, São Paulo, SP, 05652-000
Brazil

Publikationsverlauf

Eingereicht: 15. März 2020

Angenommen: 18. April 2020

Artikel online veröffentlicht:
23. Juni 2020

© 2020. Fundação Otorrinolaringologia. This is an open access article published by Thieme under the terms of the Creative Commons Attribution-NonDerivative-NonCommercial License, permitting copying and reproduction so long as the original work is given appropriate credit. Contents may not be used for commecial purposes, or adapted, remixed, transformed or built upon. (https://creativecommons.org/licenses/by-nc-nd/4.0/)
