DOI: 10.1055/s-2002-32146
© Johann Ambrosius Barth

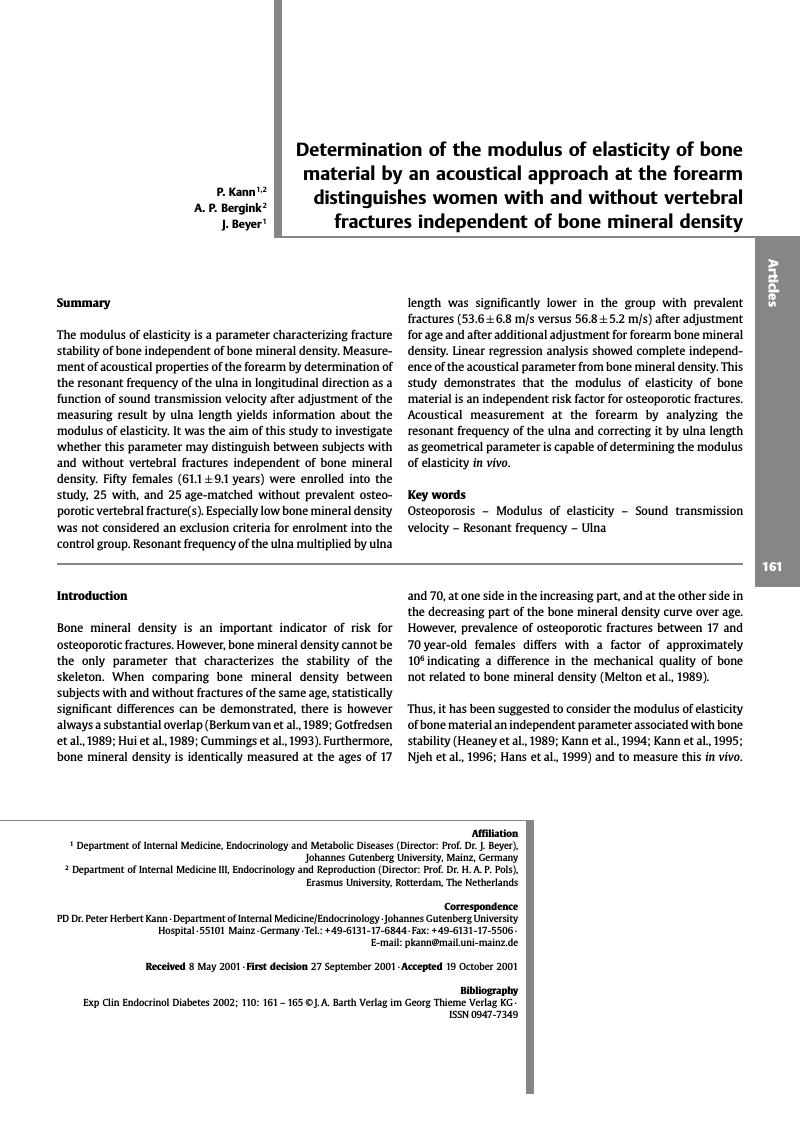

Determination of the modulus of elasticity of bone material by an acoustical approach at the forearm distinguishes women with and without vertebral fractures independent of bone mineral density
Publication History
received 8 May 2001
first decision 27 September 2001
accepted 19 October 2001
Publication Date:
10 June 2002 (online)

Summary
The modulus of elasticity is a parameter characterizing fracture stability of bone independent of bone mineral density. Measurement of acoustical properties of the forearm by determination of the resonant frequency of the ulna in longitudinal direction as a function of sound transmission velocity after adjustment of the measuring result by ulna length yields information about the modulus of elasticity. It was the aim of this study to investigate whether this parameter may distinguish between subjects with and without vertebral fractures independent of bone mineral density. Fifty females (61.1 ± 9.1 years) were enrolled into the study, 25 with, and 25 age-matched without prevalent osteoporotic vertebral fracture(s). Especially low bone mineral density was not considered an exclusion criteria for enrolment into the control group. Resonant frequency of the ulna multiplied by ulna length was significantly lower in the group with prevalent fractures (53.6 ± 6.8 m/s versus 56.8 ± 5.2 m/s) after adjustment for age and after additional adjustment for forearm bone mineral density. Linear regression analysis showed complete independence of the acoustical parameter from bone mineral density. This study demonstrates that the modulus of elasticity of bone material is an independent risk factor for osteoporotic fractures. Acoustical measurement at the forearm by analyzing the resonant frequency of the ulna and correcting it by ulna length as geometrical parameter is capable of determining the modulus of elasticity in vivo.
Key words:
Osteoporosis - Modulus of elasticity - Sound transmission velocity - Resonant frequency - Ulna
References
- 1 Abendschein W, Hyatt G W. Ultrasonics and selected properties of bone. Clin Orthop. 1970; 69 294-301
- 2 Ashman R B, Rho J Y, Turner C H. Anatomical variation of orthotropic elastic moduli of the proximal human tibia. J Biomech. 1989; 22 895-900
- 3 Berkum van F, Birkenhäger J C, van Veen L C, Zeelenberg J, Birkenhager-Frenkel D H, Trouerbach W T, Stijnen T, Pols H A. Noninvasive axial and peripheral assessment of bone mineral content: a comparison between osteoporotic women and normal subjects. J Bone Miner Res. 1989; 4 679-685
- 4 Brandenburger G H. Clinical determination of bone quality: is ultrasound an answer?. Calcif Tissue Int. 53 ((Suppl 1)) 1993; 151-156
- 5 Cummings S R, Black D M, Nevitt M C, Browner W, Cauley J, Ensrud K, Genant H K, Palermo L, Scott J, Vogt T M. Bone density at various sites for prediction of hip fractures. The study of osteoporotic fractures research group. Lancet. 1993; 341 72-75
- 6 Gotfredsen A, Nilas L, Pödenphant J, Hadberg A, Christiansen C. Regional bone mineral in healthy and osteoporotic women: a cross-sectional study. Scand J Clin Lab Invest. 1989; 49 739-749
- 7 Han S, Medige J, Faran K, Feng Z, Ziv I. The ability of quantitative ultrasound to predict the mechanical properties of trabecular bone under different strain rates. Med Eng Phys. 1997; 19 742-747
- 8 Hans D, Wu C, Njeh C F, Zaho S, Augat P, Newitt D, Link T, Lu Y, Majumdar S, Genant H K. Ultrasound velocity of trabecular cubes reflects mainly bone density and elasticity. Calcif Tissue Int. 1999; 64 18-23
- 9 Heaney R P, Avioli L V, Chesnut C H, Lappe J, Recker R R, Brandenburger G H. Osteoporotic bone fragility - detection by ultrasound transmission velocity. JAMA. 1989; 261 2986-2990
- 10 Hodgskinson R, Njeh C F, Currey J D, Langton C M. The ability of ultrasound velocity to predict the stiffness of cancellous bone in vitro. Bone. 1997; 21 183-190
- 11 Hui S L, Slemenda C W, Johnston C C. Baseline measurement of bone mass predicts fracture in white women. Ann Intern Med. 1989; 111 355-361
- 12 Kann P, Schulz U, Nink M, Pfützner A, Schrezenmeir J, Beyer J. Architecture in cortical bone and ultrasound transmission velocity. Clin Rheumatol. 1993; 12 364-367
- 13 Kann P, Graeben S, Beyer J. Age-dependence of bone material quality shown by the measurement of frequency of resonance in the ulna. Calcif Tissue Int. 1994; 54 96-100
- 14 Kann P, Schulz U, Klaus D, Piepkorn B, Beyer J. In-vivo investigation of material quality of bone tissue by measuring apparent phalangeal ultrasound transmission velocity. Clin Rheumatol. 1995; 14 26-34
- 15 Katz J L. Anisotropy of young's modulus of bone. Nature. 1980; 283 106-107
- 16 Kuebler A, Schulz G, Schmidtmann I, Cordes U, Beyer J, Krause U. Measurement of bone mineral density at the distal forearm of healthy men and women using single-photon absorptiometry. Nuc Compact. 1991; 22 47-50
- 17 Langton C M, Hodgskinson R. The in vitro measurement of ultrasound in cancellous bone. Stud Health Technol Inform. 1997; 40 175-179
- 18 Lee S C, Coan B S, Bouxsein M L. Tibial ultrasound velocity measured in situ predicts the material properties of tibial cortical bone. Bone. 1997; 21 119-125
- 19 Melton L J, Kan S H, Frye M A, Wahner H W, O'Fallon W M, Riggs B L. Epidemiology of vertebral fractures in women. Am J Epidemiol. 1989; 129 1000-1011
- 20 Nicholson P H, Strelitzki R. On the prediction of young's modulus in calcaneal cancellous bone by ultrasonic bulk and bar velocity measurements. Clin Rheumatol. 1999; 18 10-16
- 21 Njeh C F, Hodgskinson R, Currey J D, Langton C M. 1996 Orthogonal relationships between ultrasonic velocity and material properties of bovine cancellous bone. Med Eng Phys. 1996; 18 373-381
- 22 Riggs B L, Seeman L, Hodgson S F, Taves D R, O'Fallon W M. Effect of the fluoride/calcium regime on vertebral fracture occurrence in postmenopausal osteoporosis. New Engl J Med. 1982; 306 446-450
- 23 Rho J Y. Ultrasonic characterisation in determining elastic modulus of trabecular bone material. Med Biol Eng Comput. 1998; 36 57-59
- 24 Sedlin E D, Hirsch C. Factors affecting the determination of the physical properties of femoral cortical bone. Acta Orthop Scandinav. 1996; 37 29-48
PD Dr. Peter Herbert Kann
Department of Internal Medicine/Endocrinology
Johannes Gutenberg University Hospital
55101 Mainz
Germany
Phone: + 49-6131-17-6844
Fax: + 49-6131-17-5506
Email: pkann@mail.uni-mainz.de
