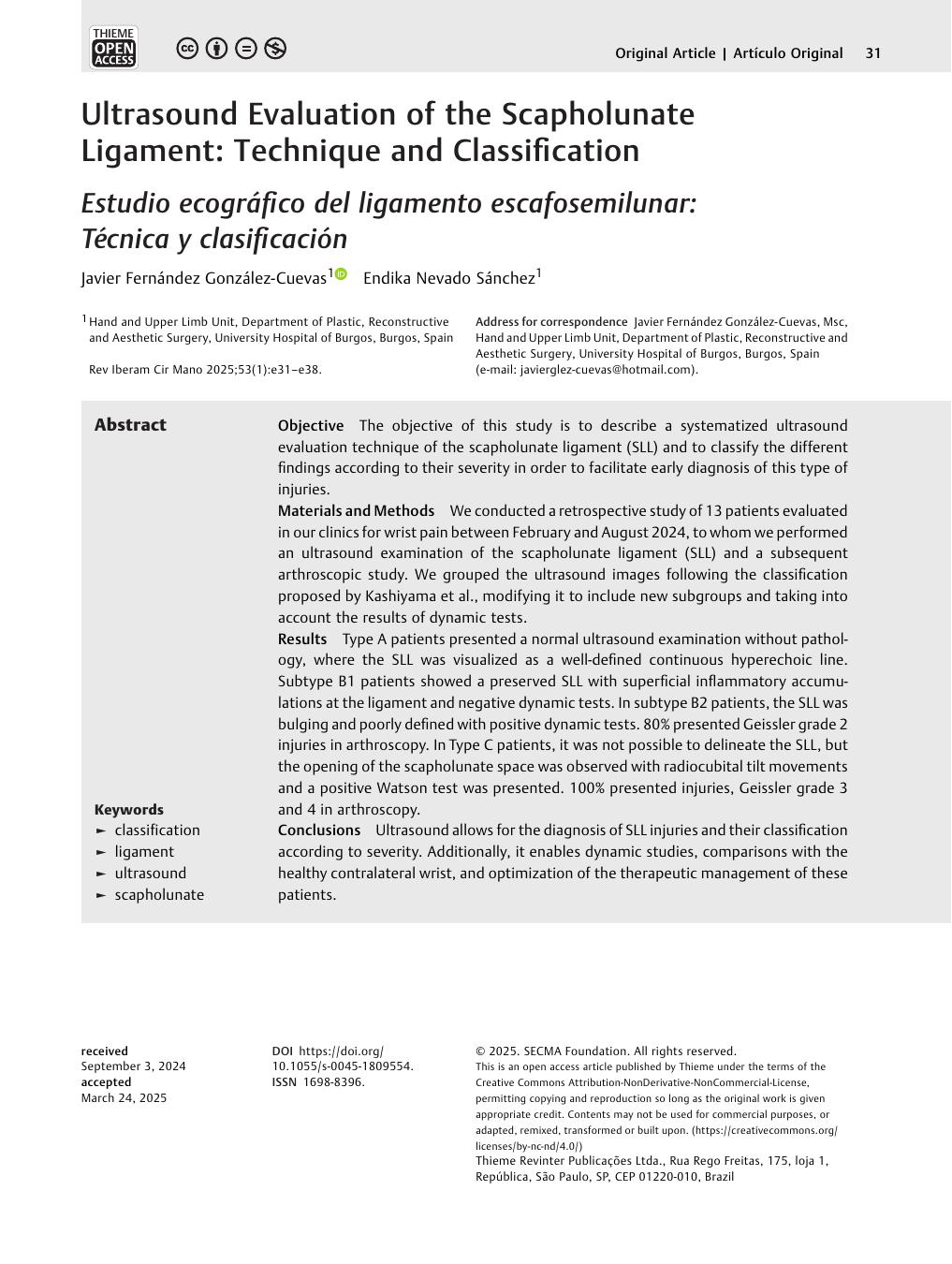

Ultrasound Evaluation of the Scapholunate Ligament: Technique and Classification

Abstract

Objective

The objective of this study is to describe a systematized ultrasound evaluation technique of the scapholunate ligament (SLL) and to classify the different findings according to their severity in order to facilitate early diagnosis of this type of injuries.

Materials and Methods

We conducted a retrospective study of 13 patients evaluated in our clinics for wrist pain between February and August 2024, to whom we performed an ultrasound examination of the scapholunate ligament (SLL) and a subsequent arthroscopic study. We grouped the ultrasound images following the classification proposed by Kashiyama et al., modifying it to include new subgroups and taking into account the results of dynamic tests.

Results

Type A patients presented a normal ultrasound examination without pathology, where the SLL was visualized as a well-defined continuous hyperechoic line. Subtype B1 patients showed a preserved SLL with superficial inflammatory accumulations at the ligament and negative dynamic tests. In subtype B2 patients, the SLL was bulging and poorly defined with positive dynamic tests. 80% presented Geissler grade 2 injuries in arthroscopy. In Type C patients, it was not possible to delineate the SLL, but the opening of the scapholunate space was observed with radiocubital tilt movements and a positive Watson test was presented. 100% presented injuries, Geissler grade 3 and 4 in arthroscopy.

Conclusions

Ultrasound allows for the diagnosis of SLL injuries and their classification according to severity. Additionally, it enables dynamic studies, comparisons with the healthy contralateral wrist, and optimization of the therapeutic management of these patients.

Keywords

classification - ligament - ultrasound - scapholunate

Publication History

Received: 03 September 2024

Accepted: 24 March 2025

Article published online:
21 July 2025

• Bibliografía

• 1 Corella F, Ocampos M, Del Cerro-Gutiérrez M. Diagnóstico y tratamiento artroscópico de la inestabilidad escafolunar. Rev Esp Artrosc Cir Articul 2014; 21 (01) 51-62
• 2 Mathoulin CL, Dauphin N, Wahegaonkar AL. Arthroscopic dorsal capsuloligamentous repair in chronic scapholunate ligament tears. Hand Clin 2011; 27 (04) 563-572 , xi
• 3 Kitay A, Wolfe SW. Scapholunate instability: current concepts in diagnosis and management. J Hand Surg Am 2012; 37 (10) 2175-2196
• 4 Shahabpour M, De Maeseneer M, Pouders C. et al. MR imaging of normal extrinsic wrist ligaments using thin slices with clinical and surgical correlation. Eur J Radiol 2011; 77 (02) 196-201
• 5 Díaz HFS, Fernández FD, Horcajadas ÁB, Martínez MV, Yubero MEC. Usefulness of the Ultrasound in Hand Surgery: Part I. Rev Iberoam Cir Mano 2021; 49 (02) e128-e139
• 6 Falsetti P, Conticini E, Baldi C. et al. Ultrasound evaluation of the scapholunate ligament and scapholunate joint space in patients with wrist complaints in a rheumatologic setting. J Ultrason 2021; 21 (85) e105-e111
• 7 Kashiyama T, Miura T, Sugawara R, Uehara K. Ultrasonographic Classification of Scapholunate Interosseous Ligament Injury Associated With Distal Radius Fracture. J Hand Surg Am 2020; 45 (12) 1182.e1-1182.e5
• 8 Geissler WB, Haley T. Arthroscopic management of scapholunate instability. Atlas Hand Clin 2001; 6: 253-274
• 9 Scheck RJ, Kubitzek C, Hierner R. et al. The scapholunate interosseous ligament in MR arthrography of the wrist: correlation with non-enhanced MRI and wrist arthroscopy. Skeletal Radiol 1997; 26 (05) 263-271
• 10 De Santis S, Cozzolino R, Luchetti R, Cazzoletti L. Comparison between MRI and arthroscopy of the wrist for the assessment of posttraumatic lesions of intrinsic ligaments and the triangular fibrocartilage complex. J Wrist Surg 2021; 11 (01) 28-34
• 11 Leclercq C, Mathoulin C. Members of EWAS. Complications of wrist arthroscopy: a multicenter study based on 10107 arthroscopies. J Wrist Surg 2016; 5 (04) 320-326
• 12 Dao KD, Solomon DJ, Shin AY, Puckett ML. The efficacy of ultrasound in the evaluation of dynamic scapholunate ligamentous instability. J Bone Joint Surg Am 2004; 86 (07) 1473-1478
• 13 Taljanovic MS, Sheppard JE, Jones MD, Switlick DN, Hunter TB, Rogers LF. Sonography and sonoarthrography of the scapholunate and lunotriquetral ligaments and triangular fibrocartilage disk: initial experience and correlation with arthrography and magnetic resonance arthrography. J Ultrasound Med 2008; 27 (02) 179-191
• 14 Huber N, Götschi T, Schweizer A, Reissner L. Catch the shift: Ultrasound diagnosis of scapholunate lesion during Watson test. Hand Surg Rehabil 2024; 43 (05) 101756
• 15 Kendi ATK, Güdemez E. Sonographic evaluation of scapholunate ligament: value of tissue harmonic imaging. J Clin Ultrasound 2006; 34 (03) 109-112
• 16 Griffith JF, Chan DP, Ho PC, Zhao L, Hung LK, Metreweli C. Sonography of the normal scapholunate ligament and scapholunate joint space. J Clin Ultrasound 2001; 29 (04) 223-229
• 17 Manske MC, Huang JI. The Quantitative Anatomy of the Dorsal Scapholunate Interosseous Ligament. Hand (N Y) 2019; 14 (01) 80-85
• 18 Rodriguez RM, Ernat JJ. Ultrasonography for Dorsal-Sided Wrist Pain in a Combat Environment: Technique, Pearls, and a Case Report of Dynamic Evaluation of the Scapholunate Ligament. Mil Med 2020; 185 (1-2): e306-e311
• 19 Corella F, Del Cerro M, Ocampos M, Simon de Blas C, Larrainzar-Garijo R. Arthroscopic Scapholunate Ligament Reconstruction, Volar and Dorsal Reconstruction. Hand Clin 2017; 33 (04) 687-707
• 20 Del Piñal F. Arthroscopic volar capsuloligamentous repair. J Wrist Surg 2013; 2 (02) 126-128
